Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish | MBS Hanging

Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish

Product 1

Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish

SKU: 100.268A
Unit Price$5.61
Quantity Price Each (USD)
1-99 $5.61
100-501 $5.33
500+ $5.05
1000+ Contact Us

Select Material:
Select Finish:

Clear Anodized

Black Anodized

Champagne Anodized

Gold Anodized

Shiny Anodized

Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish

SKU: 100.268A
Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish
Description:

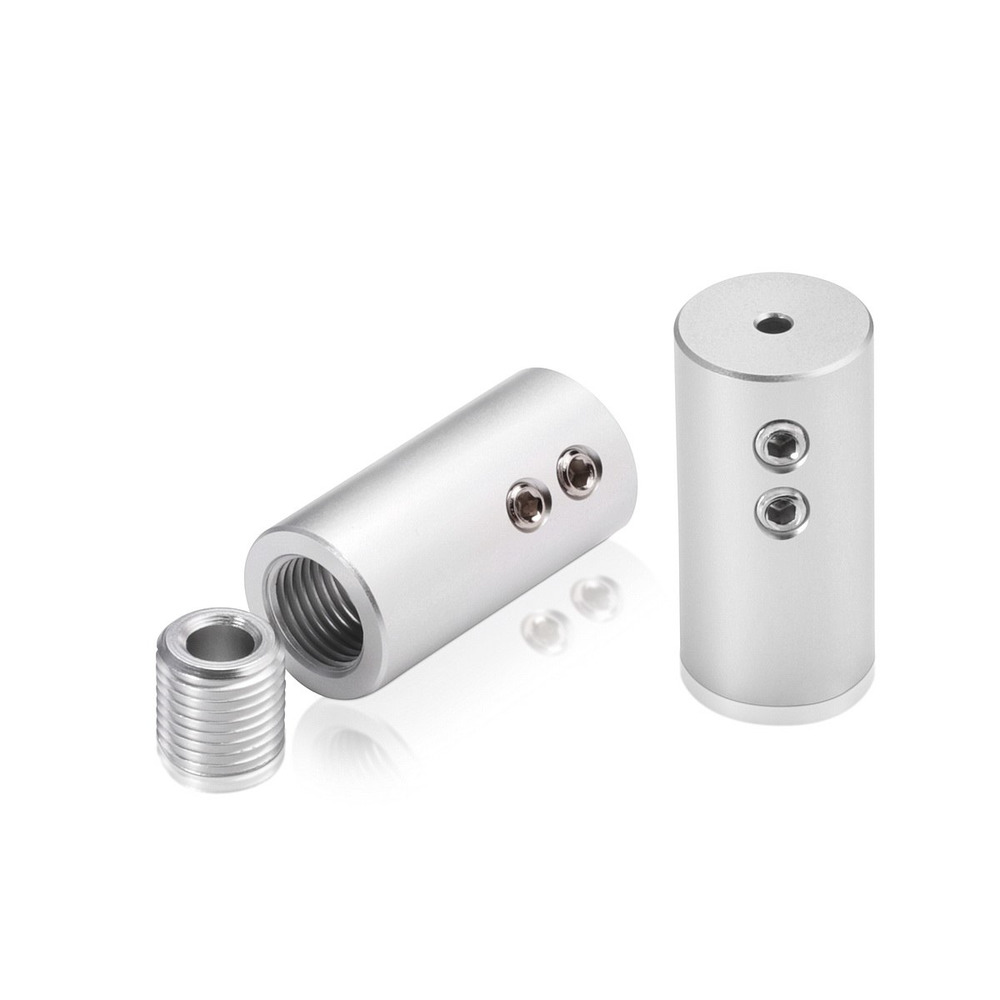

Our Ceiling Mount provides the perfect way to easily suspend items using our gorgeous Cable Systems. It is a vital part to a functional system and has a beautiful finish to match your Cable System perfectly. The combination of many high quality parts like this is what makes our Display Systems so versatile and provides an application for nearly any situation you can imagine! Please see below for the technical description for this item.

Aluminum Ceiling Mounted Material Holder, Clear Anodized Finish

SKU: 100.268A
Sku 100.268A
Finish Clear Anodized
Inside/Outside Inside Use Only
Material Aluminum
Diameter 5/8''
Distance From Wall 1-3/16''
Cable Diameter 1/16''
Length 1-3/16''
Washer Not Included
Rated Strength 55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application Ceiling Suspended
Screw Size for Installation #8
Installation

The installation process is very easy!
First, mark where you will be hanging your ceiling mount(s)
Then, drill any necessary holes and install your anchors.
Next, loosen the set screw and remove the threaded ceiling support.
Slide a screw through the ceiling support and screw it securely into the anchor.
Before screwing the Ceiling Mounted Material Holder to the threaded ceiling support, slide your cable all the way through the top of the Material Holder.
Now just screw the Material Holder onto the ceiling support, attach your choice of hanging fork, and enjoy your gorgeous signage!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Installation Hardware #8 Screw and Anchor
Tools Required M4 Hex key, Screwdriver
