Aluminum Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')

Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1

  1. Home
  2. Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
Title:
Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
SKU: ACG1904
Unit Price$15.23
Quantity Price Each (USD)
1-99
$15.23
100-499 $13.71
500+ $12.18
1000+ Contact Us
Select Material:
Select Hanging type:
Select Cable Diameter:
Title:
Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
SKU: ACG1904
Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
Description:
Our Aluminum Cable Kits make setting up your perfect system that much easier. Find the right kit for you, then simply add your Cable Supports and get ready to be amazed! The elegant finishes that we carry will give your display a unique look that will make it stand out like no other. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular package.
Title:
Aluminum Clear Anodized Ceiling to Floor Cable System Kit (included 1 x Bottom, 1 x Top, 1 x Steel Cable 1/16'' Length 13' 1'')
SKU: ACG1904
Sku
ACG1904
Finish
Clear Anodized
Inside/Outside
Inside Use Only
Material
Aluminum
Diameter
3/4''
Distance From Wall
N/A
Cable Diameter
1/16''
Length
1.14''
Washer
Not Included
Rated Strength
55 lbs (25 Kg) per Steel Cable (When Properly Installed)
Application
Ceiling to Floor
Screw Size for Installation #8

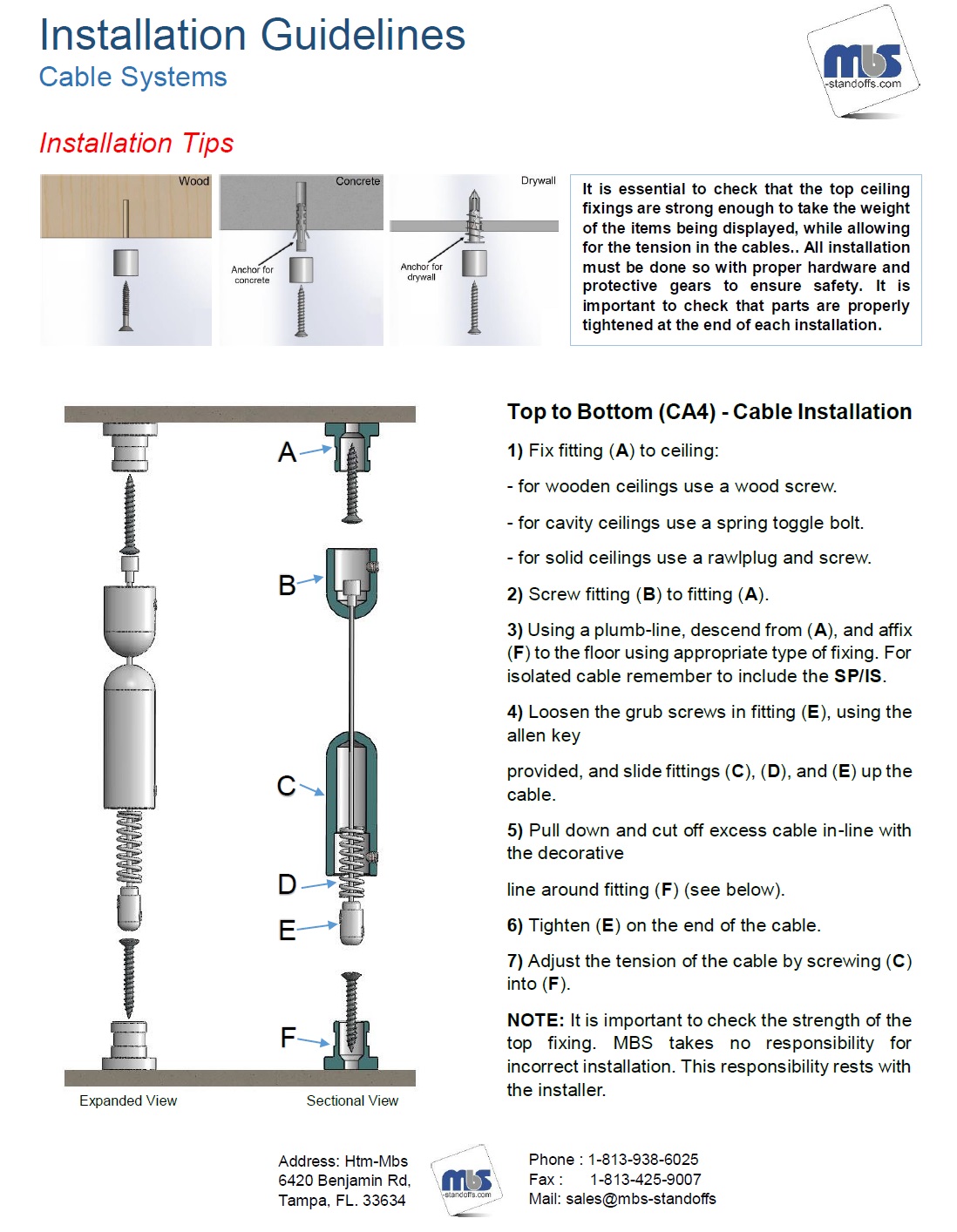

Installation

The installation process is very easy!
First, mark where you will be hanging your wall, ceiling, or floor mounts.
Then, drill any necessary holes and install your anchors.

The cable will be threaded into both the Cable Tensioner and the Ceiling mount and then tightened down.

Install the bottom components first, then slide your Cable Supports onto your cable before installing your upper components.

When you go to install your upper components, determine if you have any excess cable and carefully cut away the excess.
If you are installing a Wall Mounted System, you will install the Vertical Assembly Arm(s) and then attach the Cable Tensioner and/or Ceiling Mount into the Vertical Assembly arm.
All that's left is to hang your material, tighten the set screws, and enjoy your beautiful display!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Installation Hardware #8 Screw & Anchor
Tools Required M4 Hex Key, M5 Hex Key, Screwdriver
