Ceiling Suspended Cable Kit Heavy Duty - Clear Anodized Aluminum - Thick 1/8'' to 5/16''' | MBS Hanging

Ceiling Suspended Cable Kit Heavy Duty - Clear Anodized Aluminum - Thick 1/8'' to 5/16'''

Product 1

Ceiling Suspended Cable Kit Light Duty - Clear Anodized Aluminum - Thick 1/8'' to 5/16''' - 1/16'' Diameter Cable

SKU: ACG1902
Unit Price$11.29
Quantity Price Each (USD)
1-99 $11.29
100-501 $10.73
500+ $10.16
1000+ Contact Us

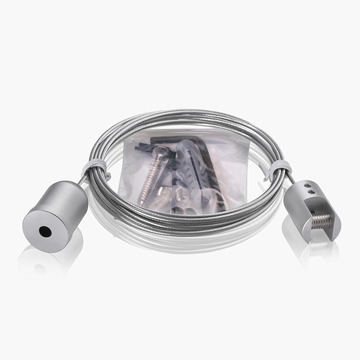

Ceiling Suspended Cable Kit Light Duty - Clear Anodized Aluminum - Thick 1/8'' to 5/16''' - 1/16'' Diameter Cable

SKU: ACG1902
Ceiling Suspended Cable Kit Light Duty - Clear Anodized  Aluminum - Thick 1/8'' to 5/16''' - 1/16'' Diameter Cable
Description:
Our Aluminum Cable Kits make setting up your perfect system that much easier. Find the right kit for you, then simply add your Cable Supports and get ready to be amazed! The elegant finishes that we carry will give your display a unique look that will make it stand out like no other. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular package.

Ceiling Suspended Cable Kit Light Duty - Clear Anodized Aluminum - Thick 1/8'' to 5/16''' - 1/16'' Diameter Cable

SKU: ACG1902
Sku ACG1902
Finish Clear Anodized
Inside/Outside Inside Use Only
Material Aluminum
Diameter 3/4''
Cable Diameter 1/16''
Length 78'' (2 m)
Rated Strength 55 lbs (25 Kg)
Thickness Material Accepted Between (1/8'' and 5/16'')
Maximum Thick. Material 5/16''
Duty Light Duty
Screw Size for Installation #8
Installation

The installation process is very easy!
First, mark where you will be hanging your ceiling mount(s)
Then, drill any necessary holes and install your anchors.
Next, loosen the set screw and remove the ceiling support holder.
Slide a screw through the ceiling support holder and screw it securely into the anchor.
Before screwing the Ceiling Mounted Material Holder to the threaded ceiling support, slide your cable all the way through the top of the Material Holder.
Now place the Material Holder onto the ceiling support holder and tighten the set screw.
Cut the cable at the desired length, thread it into the top of your hanging fork, and tighten the set screw.
All that's left is to hang your material, tighten the set screw, and enjoy your beautiful display!

Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Installation Hardware #8 Screw & Anchor
Tools Required M3 Hex key, M4 Hex key, M6 Hex key, Screwdriver
