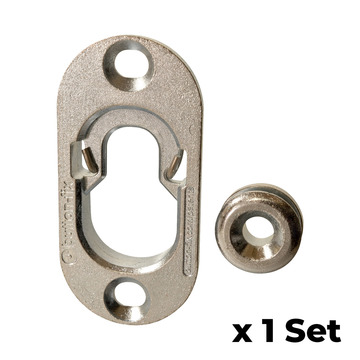

Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1

Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retain

Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1
Title:
Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1
SKU: 171-021-11
Unit Price$8.25
Quantity Price Each (USD)
1-99
$8.25
100-499 $7.67
500+ $7.09
1000+ Contact Us
Select Quantity Per Set:
1
2
4
Title:
Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1
SKU: 171-021-11
Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1
Description:
Button-fix Type 1 Metal fixings - Connects panels at 90 degrees and engages with a straight push, For Button-fix Type 1 Metal fixings holding a 70cm square panel survived 15g shock loads and only releasing the panel at 20g. To put that in context, the drag racing world record of 4.4s over ¼ mile created 4.2g and the space shuttle generated a maximum of 3g during launch and re-entry. Type 1 Metal is made from zinc which has a melting temperature of 440 Degrees C so is perfect for fire retardant panels. In house tests show that when Type 1 Metal was face fixed with wood screws to plywood it failed at 300kg. So, assuming a 2 to 1 safety factor, a safe load for just one fixing would be 150kg. Comprehensive independent test load data will be available shortly. Quick and easy to install, like all the fasteners in the Button-fix family
Title:
Button Fix Type 1 Metal Fix Bracket Fixing with Stainless Steel Retaining Spring for Fire Retardant Panels, Marine Interiors, Vibration & Shock Tested x1
SKU: 171-021-11
Sku
171-021-11
Color
Silver
Material
Zinc ZL-2 with Stainless steel spring
Product Type
Type-1 Metal
Screw Size for Installation #8
Installation

The Button-fix concept is simple: durable Fixes are attached to the back of one panel and the mating Buttons are attached to the other. Bring the panels together and slide until the Button-fixes ‘click’.



Width IN 17/25''
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Quantity Per Set 1
Installation Hardware #8 Screw & Anchor
